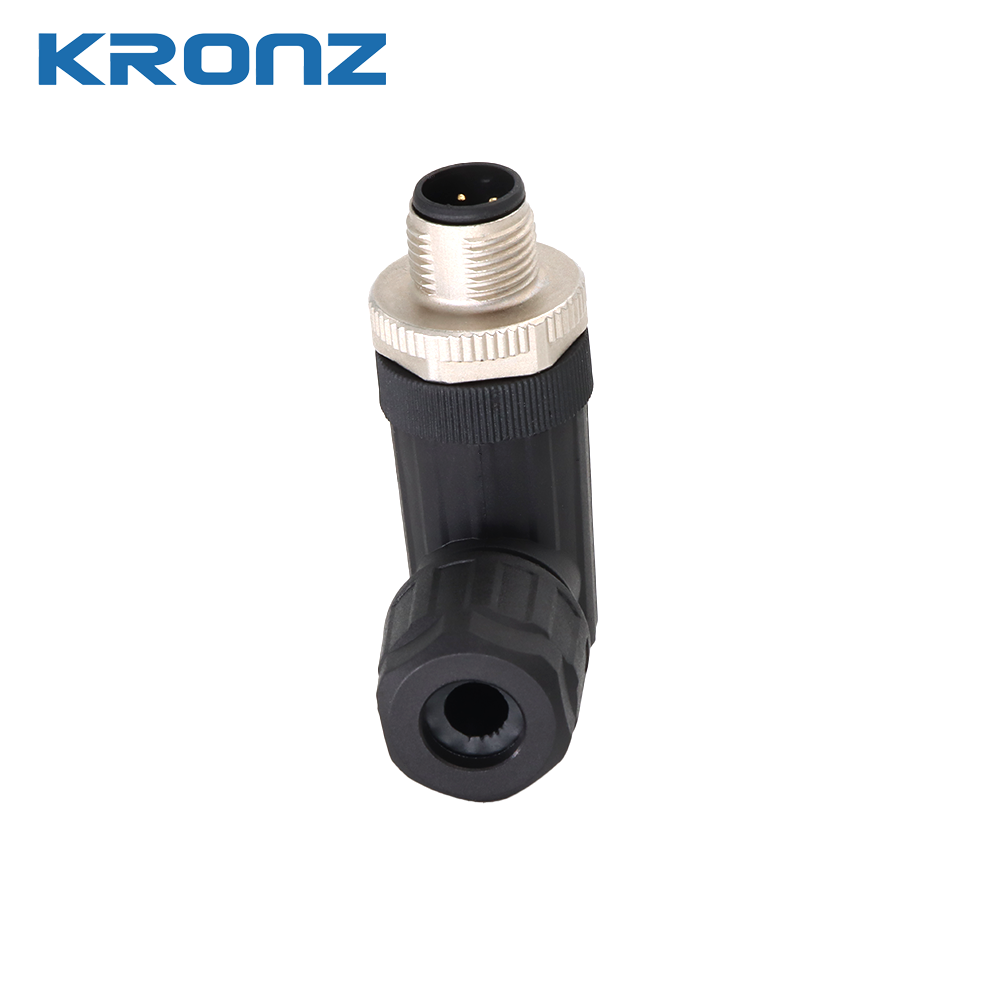

M12 Sensor Connector 4 Pin Aviation Plug 250V Angled Circular Connectos Resistance ≤5mΩ

Name: M12 Sensor Connector 4 Pin Aviation Plug 250V Angled Circular Connectos Resistance 5mΩ
Brand: KRONZ
Price: 1 USD

Buy cheap M12 Sensor Connector 4 Pin Aviation Plug 250V Angled Circular Connectos Resistance ≤5mΩ product

Brand Name : KRONZ

Model Number : H1204MA-9/L

Place of Origin : Guangdong, China

Certification : CE

MOQ : 5

Price : Negotiable

Packaging Details : Polybag packing

Delivery Time : 5-8 working days

Payment Terms : T/T, Western Union,

Supply Ability : 100000 pieces per month

Gender : Male

Rated current : 4A

Contact resistance : ≤5mΩ

Coding : A

Ambient temperature : -25~+85℃

Cable Outlet Diameter : 4-8mm

Pin : 4

Clamp matrix material : ABS, PBT/PA, Black

Contact Now

M12 Sensor Connector 4 Pin Aviation Plug 250V Angled Circular Connectos Resistance ≤5mΩ

Product Attributes

Attribute	Value
Gender	Male
Rated current	4A
Contact resistance	≤5mΩ
Coding	A
Ambient temperature	-25~+85℃
Cable Outlet Diameter	4-8mm
Pin	4
Clamp matrix material	ABS, PBT/PA, Black

Product Description

The M12 Straight Cable Connector is a versatile and reliable solution for industrial connectivity needs. This waterproof connector features durable ABS/PA contact carrier material in black, designed to withstand harsh environmental conditions. The angled cable outlet provides flexible installation and cable management options.

Key Features

Product Name: M12 Connector
Standard: IEC 61076-2-101
Rated current: 4A
Ambient temperature range: -25~+85℃
Contact carrier material: ABS, PA, Black
Pollution degree: 3

M12 Sensor Connector 4 Pin Aviation Plug 250V Angled Circular Connectos Resistance ≤5mΩ

Technical Parameters

Degree of protection	IP67
Standard	IEC 61076-2-101
Clamp matrix material	ABS, PBT/PA, Black
Contact resistance	≤5mΩ
Housing material	TPU, Black
Mating cycles	>100
Contact nut material	Brass, Alloy
Rated current	4A
Seal material	NBR
Connect	Screw Connection

Applications

KRONZ M12 Cable Connectors are versatile components suitable for industrial automation, machinery, and automotive applications. These CE-certified connectors from Guangdong, China offer reliable performance with a voltage rating of 250V/60V/30V and can withstand ambient temperatures from -25~+85℃.

Support and Services

Our M12 Connector comes with comprehensive technical support and maintenance services. Our expert team is available to assist with product inquiries, troubleshooting, and guidance on installation and usage.

Packing and Shipping

The M12 Connector is securely packaged in sturdy cardboard boxes for safe delivery. Orders are typically processed and shipped within 1-2 business days.
