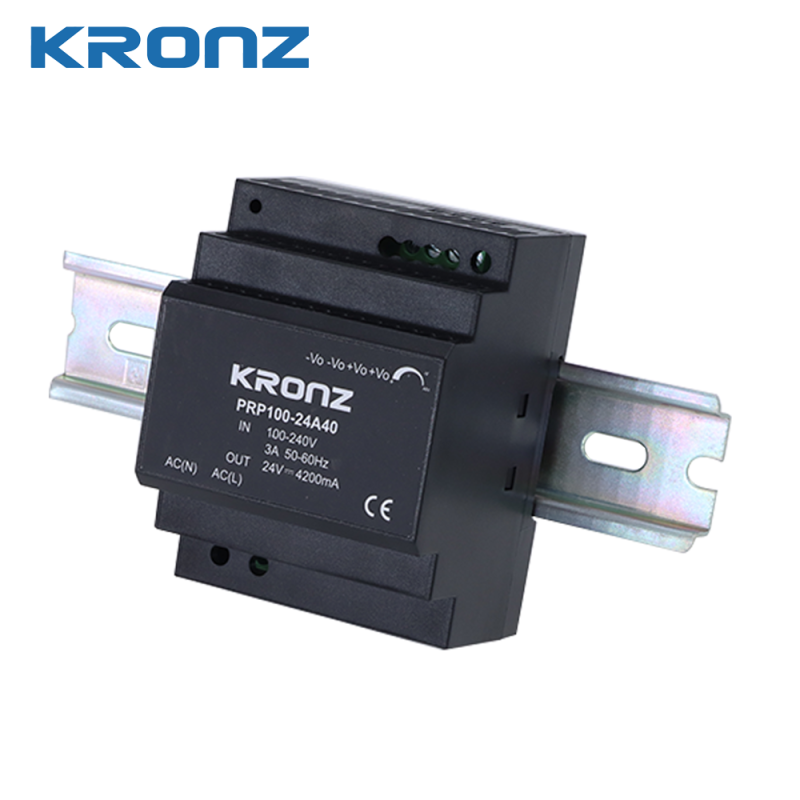

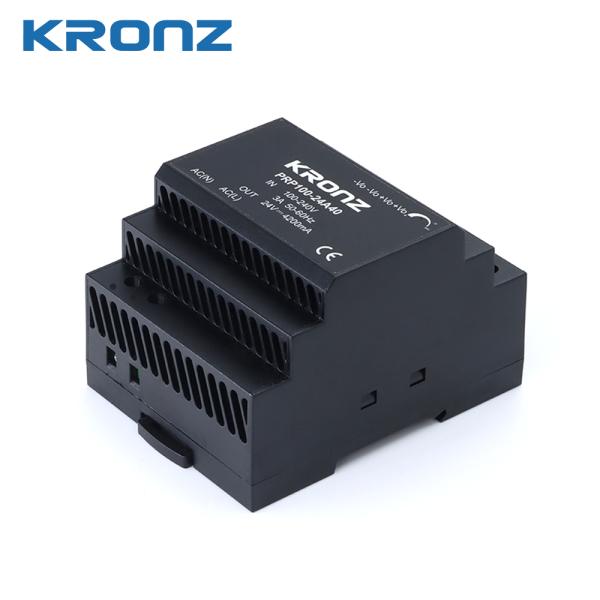

Max. 120mV Ripple Industrial Power Supply 47-63Hz Input Frequency

Name: Max 120mV Ripple Industrial Power Supply 4763Hz Input Frequency
Brand: KRONZ
Price: 1 USD

Buy cheap Max. 120mV Ripple Industrial Power Supply 47-63Hz Input Frequency product

Brand Name : KRONZ

Model Number : PRP100-15A40

Place of Origin : Guangdong, China

Certification : CE

MOQ : 1

Price : Negotiable

Packaging Details : Box Packing

Delivery Time : 5-8 working days

Payment Terms : T/T, Western Union,

Supply Ability : 10000 pieces per month

Efficiency (230VAC, %/ Typ.) : 89

Ripple (20MHz ) : Max. 120mV

Safety standards : UL/ IEC62368-1, IS13252(Par1)&EN62368-1, EN61558-1/ -2-16, BS EN 62368-1

Power-down hold time : 30ms (230VAC)

Maximum capacitive load (μF) : 6400

Output Voltage&Current : 15V/6.5A

Input current : 3.0A (115VAC) ; 1.6A (230VAC)

Load regulation : ±1.5% (230VAC)

Contact Now

Max. 120mV Ripple Industrial Power Supply 47-63Hz Input Frequency

Key Specifications

Attribute	Value
Efficiency (230VAC, %/ Typ.)	89
Ripple (20MHz)	Max. 120mV
Safety standards	UL/ IEC62368-1, IS13252(Par1)&EN62368-1, EN61558-1/ -2-16, BS EN 62368-1
Power-down hold time	30ms (230VAC)
Maximum capacitive load (μF)	6400
Output Voltage & Current	15V/6.5A
Input current	3.0A (115VAC); 1.6A (230VAC)
Load regulation	±1.5% (230VAC)

Product Overview

This high-quality industrial power supply delivers stable 15V/6.5A output for demanding industrial applications. With ±2% voltage accuracy and max 120mV ripple at 20MHz, it ensures clean, reliable power for sensitive equipment.

Max. 120mV Ripple Industrial Power Supply 47-63Hz Input Frequency

Technical Specifications

Model number for ordering	PRP100-15A40
Output power	97.5w
Nominal output voltage & current	15V/6.5A
Adjustable output voltage range (ADJ)	13.5~18.0
Efficiency (230VAC, %/Typ.)	89
Maximum capacitive load (μF)	6400

Input Characteristics

AC Input voltage	85~264VAC
DC Input voltage	120~370VDC
Input current	3.0A (115VAC); 1.6A (230VAC)
Input frequency	47~63Hz

Output Characteristics

Output voltage accuracy	±2%
Load regulation	±1.5% (230VAC)
Ripple (20MHz)	Max. 120mV
Power-down hold time	30ms (230VAC)

General Features

Operating temperature	-40~+70°C
Weight	235g
Safety standards	UL/IEC62368-1,IS13252(Par1)&EN62368-1,EN61558-1/-2-16,BS EN 62368-1

Industrial Applications

This versatile power supply is ideal for demanding industrial environments:

Factory automation systems and industrial machinery
PLC controls and industrial automation equipment
Telecommunications infrastructure with 30ms hold-up time
Test and measurement instruments requiring precise voltage
Security systems and surveillance equipment

Support & Services

Comprehensive technical support including troubleshooting, maintenance services, and product training programs to ensure optimal performance.

Packaging & Shipping

Each unit is securely packaged in protective foam within sturdy cardboard boxes. Shipped via reliable carriers with tracking provided.
