M12 Connector 3 Pin A code connector with PVC Unshielded Cable Sensor Connectors
Product Attributes
| Attribute |
Value |
| Wire color |
1=BN 3=BU 4=BK |
| Contact nut material |
Brass, Nickle-plated |
| Seal material |
FPM/FKM |
| Degree of protection |
IP67 |
| Contact resistance |
≤5mΩ |
| Mating cycles |
>100 |
| Ambient temperature |
-25~+85℃ |
| Contact surface material |
Brass, Gold-plated |
Product Description
This M12 Cable Connector is made with high-quality materials to ensure reliability and durability. The housing material is TPU, which is a strong and durable material that can withstand harsh environments. The housing is black, providing a sleek and professional appearance.
Technical Data
| Standard |
IEC 61076-2-101 |
| Contact nut material |
Brass, nickle-plated |
| Contact surface material |
Brass, gold-plated |
| Contact carrier material |
PA, black |
| Housing material |
TPU, black |
| Seal material |
FPM/FKM |
| Insulation resistance |
≥100MΩ |
| Contact resistance |
≤5mΩ |
| Pollution degree |
3 |
| Ambient temperature |
-25~+85℃ |
| Mating cycles |
>100 |
| Degree of protection |
IP67 |

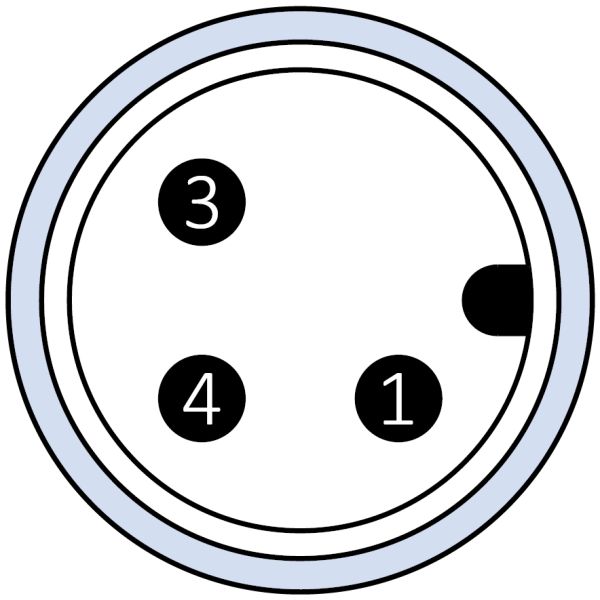

Pin Assignment

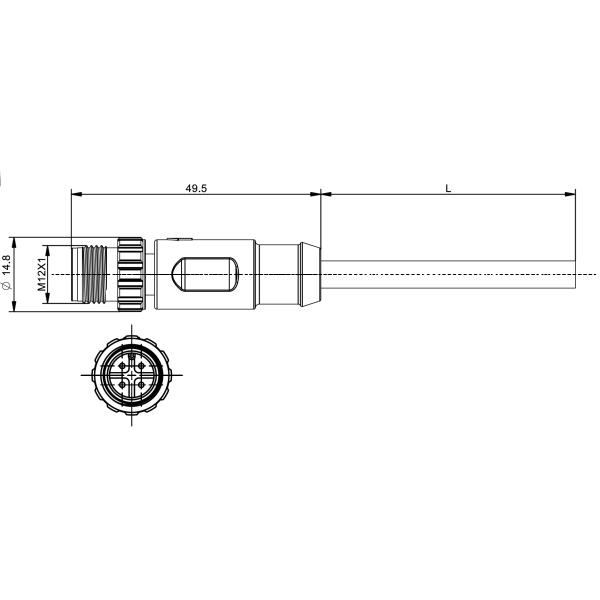

Connection method: 1=BN, 3=BU, 4=BK | Coding: A | Rated current: 4A | Voltage: 250V | Wire gauge: 3×0.34 (3×22AWG) PVC, black | Cable outlet: Straight | Length: 3M | Model No.: M1203M-3/P00K
Applications
The KRONZ M12 Connector is suitable for use in harsh environments and is widely used in:
- Industrial automation
- Robotics
- Automotive applications
- Machine tools
- Process control
- Sensor systems
- Control systems
With a supply ability of 100,000 pieces per month, this connector is an ideal choice for reliable and cost-effective connectivity solutions.
Support and Services
Our M12 Connector comes with comprehensive technical support including installation assistance, troubleshooting, and custom cable assembly services. We offer design and engineering support to ensure optimal performance for your specific application needs.
FAQ
Where is this product manufactured?
This product is manufactured in Guangdong, China.
Does this product have any certifications?
Yes, this product is CE certified.
What is the minimum order quantity for this product?
The minimum order quantity is 50 pieces.
How is this product packaged?
Packaged in polybag with export carton.
What is the delivery time?
5-8 working days for MOQ 50pcs. Contact seller for larger quantities.
