Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC

Product Categories
Kronz (guangzhou) Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

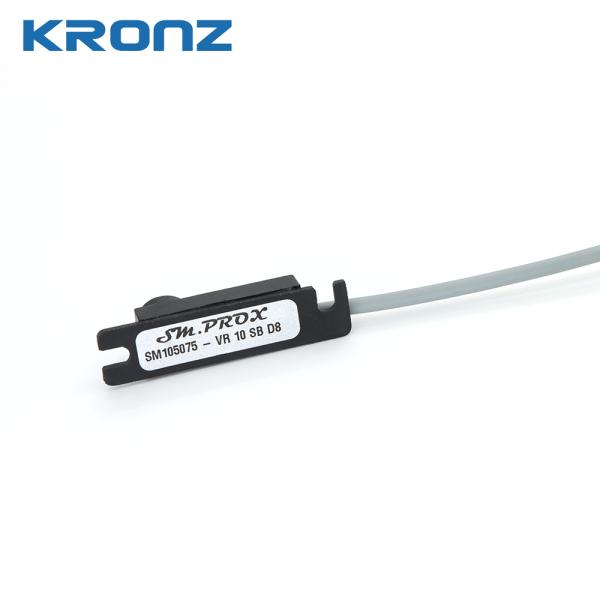

Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC

  • 1
  • 2

Brand Name : KRONZ

Model Number : VR-10-O-B-D8

Place of Origin : Guangdong, China

Certification : CE

MOQ : 1

Price : Negotiable

Packaging Details : Polybag packing

Delivery Time : 5-8 working days

Payment Terms : T/T, Western Union,

Supply Ability : 100000 pieces per month

Active surface : PVDF

Electrical version : 3 Wires DC

Output current max. le : Max.250mA

Led display : Yellow

Operating distance Sn : 8 Mm

Frequency of operating cycles : Max. 500 Hz

Connection : Cable 2m, PVC, 3x0.14mm2

Operating voltage Ub : 10...35 Vdc

Contact Now

Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC
Product Specifications
Attribute Value
Active surface PVDF
Electrical version 3 Wires DC
Output current max. le Max.250mA
Led display Yellow
Operating distance Sn 8 Mm
Frequency of operating cycles Max. 500 Hz
Connection Cable 2m, PVC, 3x0.14mm²
Operating voltage Ub 10...35 Vdc
Technical Details
Item No. VR-10-O-B-D8
Output PNP normally closed
Flush mounting no
Voltage drop Ud max. < 3.5 V
Permitted residual ripple max. 10%
No load current Io tip. 15mA
Product Description

This industrial-grade inductive sensor features a yellow LED display and maintains stable performance with temperature drift below 15%. The 3-wire DC version with 2m PVC cable ensures easy installation in various industrial automation applications.

Key features include:

  • PVDF active surface for enhanced durability and sensing accuracy
  • IP67 protection rating for resistance to dust and water ingress
  • Wide operating voltage range (10-35V DC)
  • High frequency operation (up to 500 Hz)
  • Maximum output current of 250mA
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC
Applications

This sensor is ideal for:

  • Industrial automation systems
  • Manufacturing process control
  • Precision proximity detection
  • Machine safety systems
  • Assembly line monitoring
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC
Support & Services

Comprehensive technical support including:

  • Product installation guidance
  • Troubleshooting assistance
  • Maintenance recommendations
  • Technical documentation
Packaging & Shipping

Each unit is securely packaged with:

  • Protective plastic casing
  • Bubble wrap cushioning
  • Tracked shipping service
Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC Yellow Led Display Inductive Sensors Temperature Drift 15% Electrical Version 3 Wires DC
